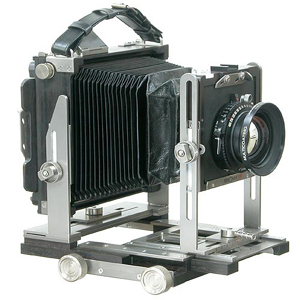

45SU相機
| FORMAT | International Standard 4x5 inch. Accepts all International Standard sheet film holders: Polaroid 405, 545, 550, Fuji Instant MS45, PA45, and all Graphic Standard roll film holders. | |
| WOOD | Macassar ebony | |
| METAL | Titanium | |
| FOCUSING | Quadruple-draw rack & pinion (front and back focusing) | |
| LENSBOARD | 4x5 Linhof-type | |
| CAMERA BACK | Interchangeable vertical/horizontal International Standard | |
| FOCUSING SCREEN | Fresnel lens with 10mm grid, protective glass | |
| MOVEMENTS
(levers lock swings and shifts, knobs lock all other movements) |
FRONT | Rise 70mm, Fall 30mm, Shift 40mm+40mm, Swing 45°+45°, Center tilt 30°+30° |
| BACK | Rise 40mm, Shift 50mm+50mm, Asymmetrical Swing 20°+20°, Asymmetrical tilt 20°+20° | |
| ZERO ("NULL") POSITION RESET | Front swings, front/back tilts: zero detents Back rise: lowest position Front rise/fall: zero position alignment points Shifts: zero position on scale |
|
| MIN/MAX BELLOWS EXTENSION | 58-365mm | |
| USABLE LENSES | 35mm* - 500mm (telephoto) *35mm - 47mm lenses (except 47XL) require recessed lensboard |
|
| SPIRIT LEVEL | FRONT | One-way |
| BACK | Two-way with mirror | |
| TRIPOD SOCKETS | Two, each 3/8" with one 1/4" reducing bush | |
| WEIGHT | 2.6kg (mahogany version 2.3kg) | |
| DIMENSIONS | 23.0 (h) x 20.5* (w) x 12.0 (l) cm *including knobs |
|
